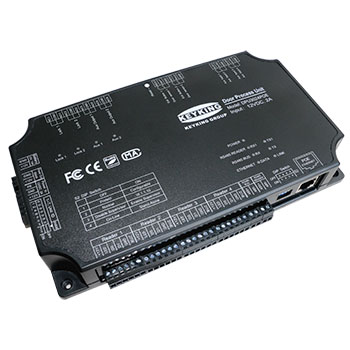

POE Networked Controller MODEL:DPU3024POE

POE Networked ControllerDPU3024POE

Listing date:2017-05-01 Updated version:V10.13 Status:On Saling

Datasheet Manual System Configurations PPT

  • Features
  • Technical Specifications
  • FAQ

DPU3000POE (POE Networked Controller) is a new design and state-of-the-art 1/2/4 doors access controllers made by KeyKing. It s the most cost effective solution for today s intelligent building. Perfectly designed to work with the Sphinx Software.
The DPU3000POE allows wide range of security levels, according to the security level required at the location of the DPU3000POE, which can be used to control and record employee entry/exit inside or outside of restricted areas. The recorded data may be automatically fed into access control software, security software, statistical analysis software or other applications.
Each DPU3000POE controller can work independently, both offline and online. When working offline, it will store all the security definitions, as well as card holders and transactions information.

Secured Operation

RS485 Reader: Supports RS485 for every door, encrypted data instead of open Wiegand data;
Multi Recognition Mode: Confirmed by Centre, Master & Slave Card, Groups Card

Features

Ultra Performance
- 1:100,000 matches in 0.1 second
Whole Wiegand Signal Compatible
- Compatible with all Wiegand reader formats from 24 to 72 Bits
RS485 Reader
-Supports 4 pcs RS485 Reader through built-in RS485 bus
Power over Ethernet
- Power supply through a single CAT5/6 wiring
Flow Control
- Flexible programmable flow control between inputs and outputs
Confirmed by Centre
- Special option feature for high security field, such as Money Warehouse, Prison...
- Valid card will open the door only after confirmed by centre
Master & Slave Card
- Only a group of Master & Slave Card will open the door in Master & Slave door status
- Each card can be a matched Master card
Several Groups Cards
- Only several groups cards will open the door in Groups Card door status
- Up to 4 groups cards can be configured
On-Line and Off-Line seamless operation
-On-Line: connected to server, Off-Line: Stand-Alone, not connected to server

Specification

CPU: 32 bits ARM® Cortex-M4 Processor
Cardholder Capacity: 100,000 users
Log Capacity: 200,000
Communication: TCP/IP 100MBPS Auto Sensing
RS485, 9600Bps
PoE: 803.11af
Reader Socket: Wiegand & RS485 Bus
Reader Amount: 4 pcs Wiegand or RS485, combined
Input: 2 REX exit buttons, 2 Door sensors
Aux Input: 4 pcs
Aux Output: 2 pcs, Dry Contact
Operating Temp: - 20℃ ~ 65℃
Operating Voltage: 12vDC, 200mA (Controller only)
12vDC, 3A (Reader connected)
Dimensions (mm): W138 x H244 x D33
W384 x H403 x D72 (Cabinet)
Certificates: CE, FCC, RoHS

System Configurations
