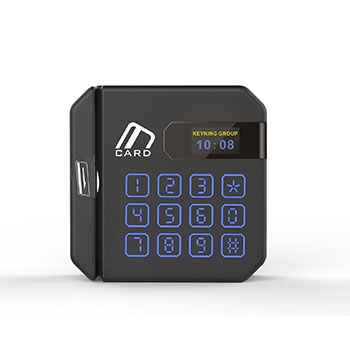

MR600U can be easily disinfiected in areas where hygine is important, and has an expectionally long life due to no moving parts. The unit resists the elements such as glue, oil, rain, ice, snow. Ideal for hopsitals, industrial and commercial application.
This dual-application product has advanced reader features for wide compatibility with different controller types including multiple RFID card transmission formats, LED & Buzzer control.
Features
•Smooth attractive design, with all-weather
•Blue backlit.
•1 LED with 2 colors and integral sounder for programming andoperation.
•Green connector for wiring.
•Multi Mode: Mifare SN, Mifare Sector, CPU card.
•Communication Ecryption: 3DES
•RS485 output, private protocol.
•MR600U is manufactured in KEYKING’s ISO:9001 registered facility.
Specification
•Maximum read range*: 50mm (2.00 in.)
•Modulation: ASK at 13.56MHz
•Compatible cards: Mifare S50, S70, KK1208M1 CPU cards
•ISO14443A
•Output: RS485 & Wiegand
•Operating Voltage: 7-12VDC
•Operating Current: ≤100mA
•Standby Current:≤80mA
•Working Temperature: -30°C to 65°C (-22°F to 150°F)
•Operating Humidity: 0 to 95%
•LED Control Input: RS485 protocol
•Buzzer Control Input: RS485 protocol
•Dimensions: 86mm L x 86mm W x 21mm D (6.59 in. x 6.59 in. x 0.83 in.)
•Weight: 290 g (0.63 lbs)
