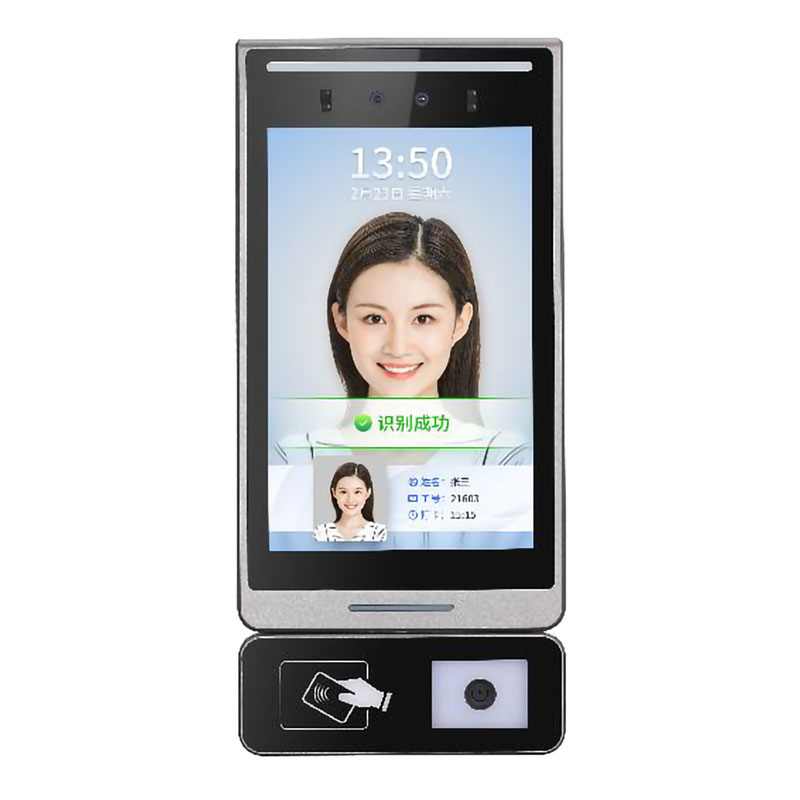

NF3528QR is a high-performance, high-reliability face recognition product. It relies on deep learning algorithms and has the characteristics of fast recognition speed and high accuracy. Support face recognition 1:1 and 1:N mode, built-in swiping card.
Features
• MTBF>5000H
• Good performance under strong light Provide RTSP video stream port for viewing real-time
• Support pictures play
• Support sip protocol(two-way talk)
• Customize voice prompt
• Standard secondary development protocol
• Support QRCode.
Application:
Schools, Community, Office, Hotel, Shopping, Mall, Shop, Public Service places, etc.
Specification
| Processor: | Dual-Core ARM Cortex-A7 and RISC-V MCU |
| Operating system: | Linux |
| Screen: | 8-inch IPS multi-touch capacitive touch screen,1280*800 |
| Memory: | 256M memory + 8GB eMMC |
| Sensor: | 1/2.8" Progressive Scan CMOS |
| Lens: | 4.32mm |
| Card swiping module: | 13.56MHz, Supports mifare(M1), S50, S70, ultralight card, NTAG card, DESFire D21, D41, D81, non-contact CPU card. 125KHz: TK、EM. |
| QRCode: | Various one-dimensional and twodimensional codes such as QR code, PDF417, EAN13, EAN8, UPC-A, etc |
| WiFi: | IEEE 802.11b/g/n standard, support 2.4GHz frequency band |
| Touch screen: | Capacitance multi-touch screen |
| Speaker: | Voice playback content can be customized |
| Recognition height: | 1.2~2.2 meters, angle adjustable |
| Recognition distance: | 0.3~1.5 meters |
| Viewing angle： | Vertical viewing angle: 30°, horizontal viewing angle: 30° |
| Recognition time： | Less than 0.3 seconds |
| Storage capacity： | 69,000 capture records |
| Face capacity： | 24,000pcs |
| Camera： | Dual cameras |
| Effective pixels： | 2MP, 1920*1080 |
| Operating temperature： | -20℃ - +60℃ |
| Working humidity： | 0～90% |
| Salt spray： | Level Rp6 or above |
| Antistatic： | Contact ±4KV, air ±8KV |
| Power： | DC12V/2A 15W(MAX) |
| Ingress Protection Rating： | IP66(Pole), IP65(Wall) |
| Dimension： | 292(L) * 133.5 (W) * 26(T) mm |
