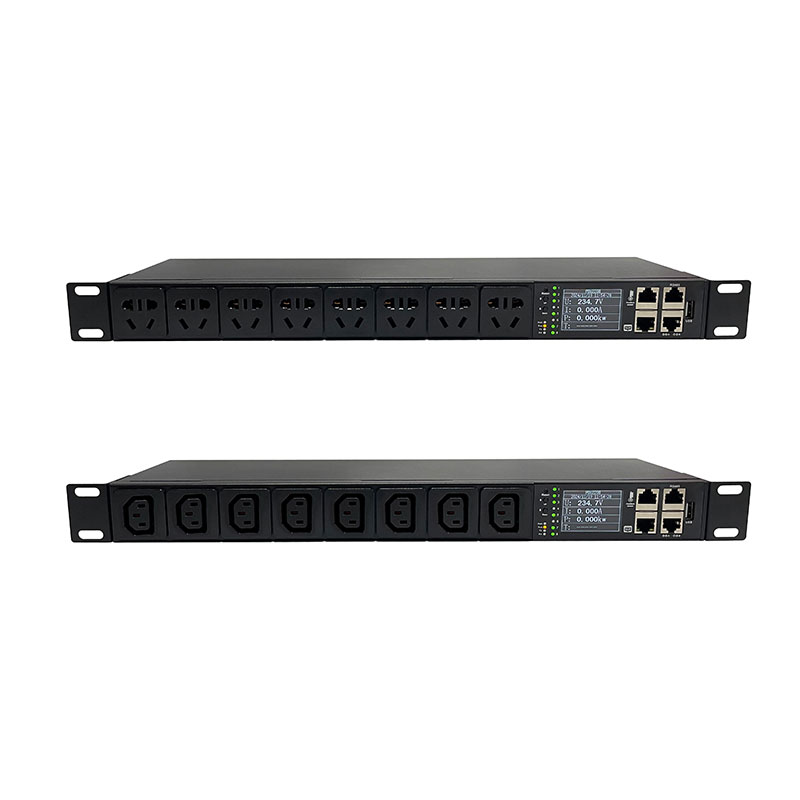

PDU2208 Based on the development trend of international power distribution monitoring and management technology, combined with the technology and market demand of data center application environment, the latest core technology with completely independent intellectual property rights is adopted, and the standard level intelligent monitoring and management power controller is carefully designed to integrate network communication, monitoring and detection, power distribution, hot plugging and other technologies.
Features
• Support 8 power sockets（Option）
• 10/100M based TCP/IP communication
• Support temperature and humidity sensors
• Optional sensors for smoke, water immersion, fire alarm, infrared, etc
• 2.0 inches IPS real-time status display
• Support button switching to display information
• Monitor input voltage and frequency
• Monitor the total load current and power
• Monitor the current and power of various loads
• Monitor the total power consumption and various power sources
• Support UDP settings
• Support HTTP web page access and settings
• Support MQTT, SNMP,SNTP
• Support timed control
• Support over limit alarm and linkage
• Support remote upgrade
• Support configuring the power on/off status of each socket during startup
Specification
| CPU: | ARM Cortex-M4 |
| Screen: | 2.0 inches IPS screen |
| Data Memory: | 500,000 |
| Power supply socket: | 8 routes |
| Communication: | TCP/IP 100MBPS、AES128 |
| Controller: | 1 RS485bus for external sensor |
| Input Voltage: | 110/220V AC， 50/60Hz |
| Total rated current: | 16A |
| Rated current: | 10A |
| Detection accuracy: | 3% |
| Refresh frequency: | 400mS |
| Warning: |
Load current upper and lower limit setting and alarm Temperature and humidity upper and lower limit setting and alarm |
| Working Temperature: | -20 ~ 65 ℃, 0-95%RH |
| Dimension: | W440×H200×D45mm |
| Weight: | 1.9kg |
