The DPU10XXNT EXP series is a powerful access controller used in networked environments and is compatible with the 1 & 3 Series access controllers, Lift Controllers, and Multi IO Controllers. The DPU10XX Series controllers can be connected to a TCP/IP network / BUS communication, and work perfectly with the SPHINX platform.
Controller Description

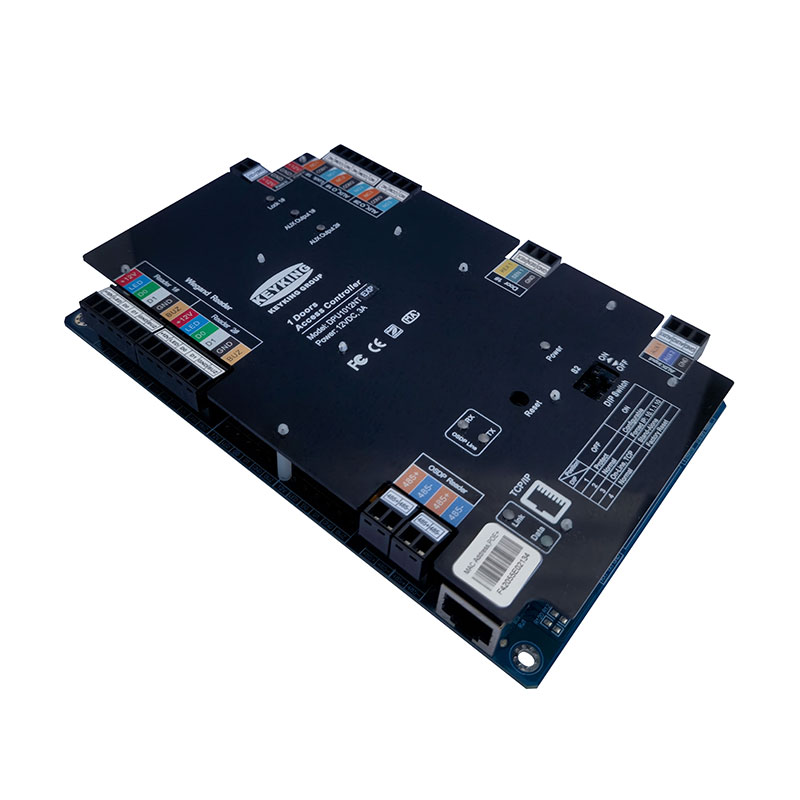

The DPU1012NT, (KEYKING, 1 Series, Door Controller, 1 Door, 2 Reader, TCP/IP Enabled) is a 1-door access controller allowing for the connection of card readers.
Features
1. 32 bits ST ARM® Cortex M4 processor with 16MBit data memory
2. TCP/IP, 10/100M Based
3. Wiegand & OSDP Wiegand reader sockets
4. Compatible with all Wiegand reader formats from 24 to 72 Bits
5. Event Flow Control
6. Supports 500 Visitors
7. Supports 128 /256-bit encryption
8. CE, FCC, RoHS approval
9. NDAA compatible
Specification
| CPU： | 32 Bit Processor |
| Door Relay (NC/NO)： | 1 |
| Door Sensor (NO)： | 1 |
| Exit Button： | 1 |
| Auxiliary Output Relays： | 2 |
| Auxiliary Inputs： | 2 |
| Wiegand / OSDP readers： | 2 |
| OSDP Baud rate： | 19200/9600/4800 |
| Communication： | TCP/IP, 10/100M Based |
| POE+： | Optional |
| Backup battery： | Enable during POE+ |
| Time Groups for each door： | 15 |
| Card Capacity： | 20,000 |
| Transaction Storage： | 200,000 events |
| Maximum LAN Distance： | 1200 meters (4000ft) using RS-485 |
| Operating Voltage： | 12V DC (±10%) |
| Power supply： | 110/220 AC (50/60HZ) switched mode 12V DC 6A Power Supply c/w 13.8V DC battery charging circuit (Charging Inspector) |
| Operating Current： | ≤200mA |
| Standby Current： | ≤150mA |
| Working Temperature： | -40~70℃ |
| Data Memory： | 16M bit (protected) |
| 1 Lithium battery backup (up to 10 years data retention) | |
| Metal case dimensions： | 315mm x 205mm x 55mm |
| Weight： | 0.2Kg (without metal case) 2.7Kg (with metal case & PSU) |
Model Identification
System Diagram
| Doors： | 1 | Readers Sockets： | 2 |
| Aux-Input： | 2 | Communication： | TCP/IP |
| Aux-Output： | 2 | Communication rate： | 10/100M Based |
| Cardholders： | 10,000 | Operating Voltage： | 12V DC (±10%) |
| Transactions： | 100,000 | Operating Current： | ≤200mA |
