Listing date：2026-01-01 Updated version： Status：

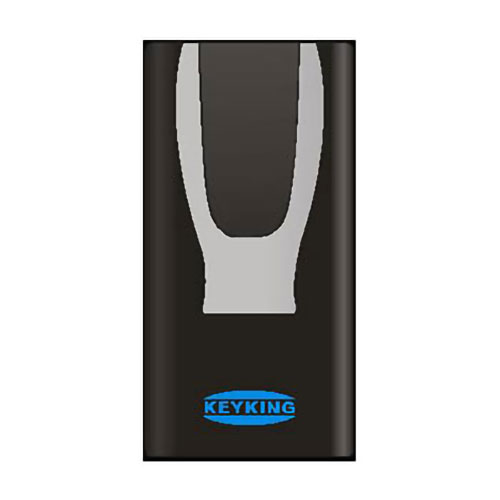

6610B can be easily disinfiected in areas where hygine is important, and has an expectionally long life due to no moving parts. The unit resists the elements such as glue, oil, rain, ice, snow. Ideal for hopsitals, industrial and commercial application.
6610 is very good for elevator controller, because the distance can be up to 1200 meters.

Features

⚫ Smooth attractive design, with all-weather
⚫ Bluetooth: Bluetooth Low Energy (BLE);
⚫ KeyConfig APP to change configurations: Name, Unit ID, Baud rate
⚫ KeyPass: Mobile Access Credential, Unique Security Feature
⚫ NFC technology
⚫ Output: Wiegand & OSDP
⚫ Programmable 2 pcs Aux Inputs
⚫ IP65 water proof
⚫ Tamper supported during OSDP
⚫ Dual color LED: Blue/Green.
⚫ 22AWG, 10 wires.
⚫ Manufactured in KEYKING’s ISO:9001 registered facility.

Specification

Maximum read range	150mm (6.00 in.)
OSDP distance to panel:	≤1200m
Wiegand distance to panel:	≤100m
Frequencies:	125KHz &13.56MHz 125KHz: EM, 2308, HID, AWID, SecuProx, KKID 13.56MHz Mifare, Mifare Sector, DesFire, CPU
Output:	Wiegand & OSDP
Operating Voltage:	7-12VDC
Operating Current:	≤100mA
Standby Current:	≤50mA
Working Temperature:	-30°C to 65°C (-22°F to 150°F)
Operating Humidity:	0 to 95%
LED Control Input:	Dry Contact, Normally Open
Buzzer Control Input:	Dry Contact, Normally Open
Dimensions:	86mm L x 43mm W x 21mm D(6.59 in. x 3.29 in. x 0.83 in.)
